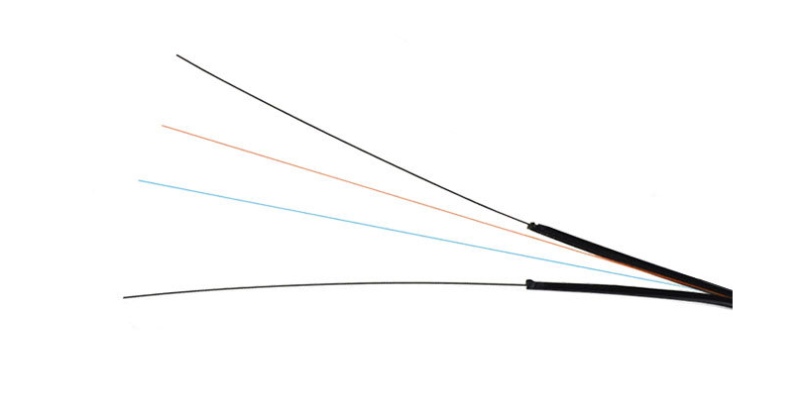

1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
2. Two parallel strength members ensure good performance of crush resistance to protect the fiber
3. Simple structure, light weight and high practicability.
4. Novel flute design, easily strip and splice, simplify the installation and maintenance
5. Single steel wire as additional strength member ensures good performance of tensile strength
Specifications:
|
Fiber Core |
1 |
2 |
1 |
4 |
|
|
Cable Dimension(mm) |
2.0×5.0 |
2.0×5.0 |
2.0×5.6 |
2.0×5.6 |
|
|
Cable Weight(kg/km) |
20 |
20 |
21 |
22 |
|
|
Max Load (N) |
Long Term |
60 |
60 |
60 |
60 |
|
Short Term |
120 |
120 |
120 |
120 |
|
|
Bending Radius(CM) |
Dynamic |
30 |
|||
|
Static |
15 |
||||
|
|
G657 |
||||
|
|
SMF |
||||
|
Wavelength |
1310/1550(nm) |
||||
|
Max Attenuation (dB/km) |
0.45/0.30 |
||||
|
AVG Attenuation (dB/km) |
0.40/0.25 |
||||
|
Minimum Bandwidth (MHz·km) |
--------- |
||||
|
Storage Operating Temperature |
-20℃～+60℃ |
||||
