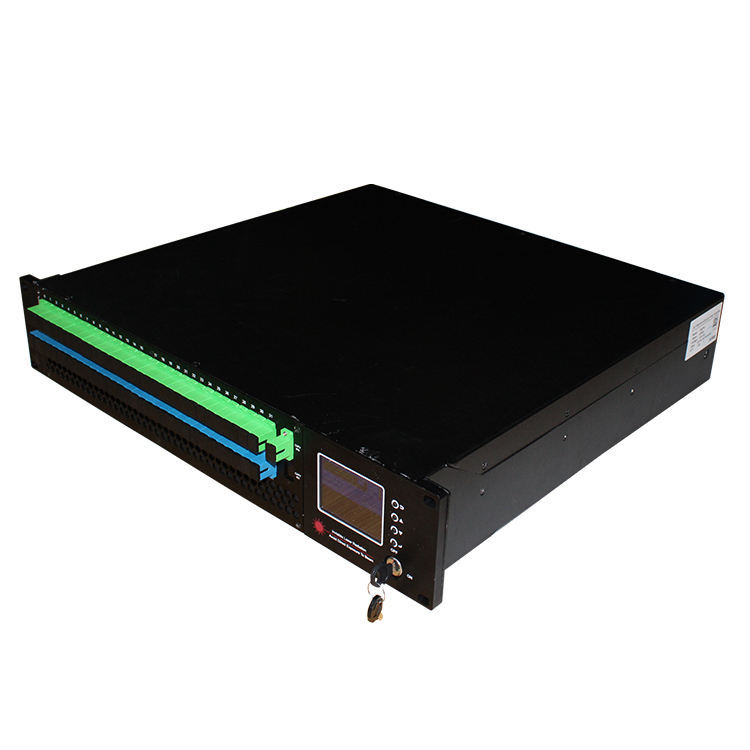

PG-EDFA-32X19-SA24A-WSU-O 32 puerto catv optical amplifier with wdm 1550nm 19 23db optical amplificador edfa

Description Review
Description
PG-EDFA-32X19-SA24A-WSU-O 32 puerto catv optical amplifier with wdm 1550nm 19 23db optical amplificador edfa


Features :
1. Using erbium ytterbium co-doped double-clad fiber technology.
2. Output power:2-10W(33-40dBm).
3. Built-in low-noise preamplifier, without EDFA cascading, greatly reducing system CNR, MER degradation.
4. Output port optional: SC connector 16 to 64 ports optional; LC connector 32 to 128 ports optional; optional WDM.
5. The front panel can be flexibly removed and replaced according to the number of output ports.
6. Optional built-in optical switch module to facilitate the expansion of equipment.
7. Front panel keys can be set to modify the performance parameters of the equipment to meet customer needs of different network design.
8. Cooling fan support online replacement.
9. Low noise figure: 0dBm input less than 5dB.
10. Perfect network management interface,national standard SNMP network management.
11. Using a dedicated server mature dual power supply hot backup structure, with only controlled by a microcomputer temperature control system, improve system reliability.
12. 0.5~-4dB adjustable output power.
13. 2.8-inch large TFT true color display.

Specifications:

Item

Unit

Technical parameter

Supplement

Bandwidth

nm

1535~1565



Input optical power

dBm

-5 ~ +10



Max output power

dBm

40



Output power stability

dBm

±0.1



Noise

dB

≤ 5.0

Input power 0dBm,λ=1550nm

Return loss

Input

dB

≥ 45



Output

dB

≥ 45



Optical connector



SC/APC,SCUPC,LCAPC,LCUPC

Can be Customized

C/N

dB

≥ 50

Test conditions
according to GT / T
184-2002
implementation

C/CTB

dB

≥ 63

C/CSO

dB

≥ 63

Supply voltage

V

PW80) AC220V(160V ~ 265V) /
AC110V( 90 ~130V) /
DC48V( 38 ~ 58V)
PW300) AC220V(160V ~ 265V) /
AC110V( 90 ~130V) /
DC48V( 38 ~ 58V)



Consumption

W

≤ 105



Working temperature

-5 - +42



Maximum working relative
humidity

%

Maximum 95% non-condensing



Maximum storage relative
humidity

%

Maximum 95% non-condensing



Storage temperature

-30 ~ +70



Devise size

mm

450(L)*482(W)*89(H)



Package size

mm

640(L)*640(W)*200(H)
